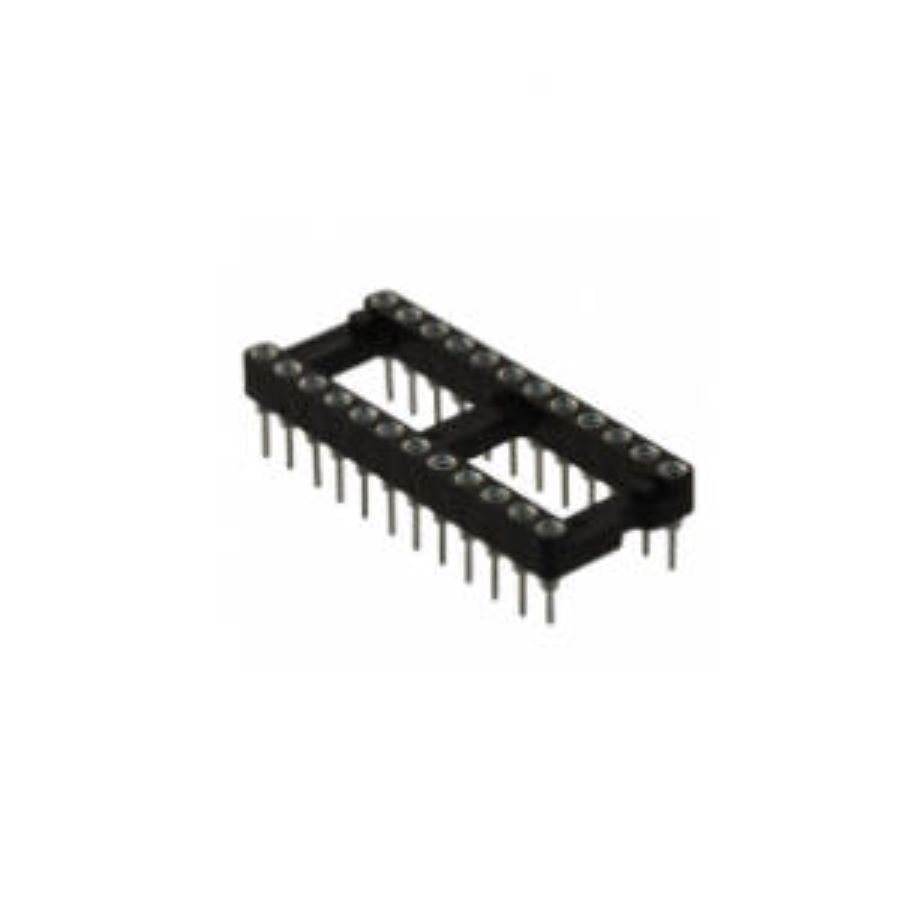

110-44-424-41-001000
Manufacturer:
Mill Max
Mfr.Part #:
110-44-424-41-001000
Datasheet:
Description:
IC and Component Sockets Through Hole Number of Positions:24 Number of Rows:2 Pitch:2.54 mm Row Spacing:10.16 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 150 V |
| Length | 30.4 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 24 |
| Packaging | Tube |
| Depth | 12.7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 10 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass Alloy |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Row Spacing | 10.16 mm |
| Insulation Material | Polychlorinated |
| Contact Resistance | 10 mΩ |
Stock: 1360
Distributors
pcbx
pcbxUnit Price$1.26878
Ext.Price$1.26878
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.26878 | $1.26878 |
| 10 | $1.17254 | $11.72540 |
| 25 | $1.08360 | $27.09000 |
| 50 | $1.00140 | $50.07000 |
| 100 | $0.92544 | $92.54400 |
| 300 | $0.85524 | $256.57200 |
| 500 | $0.79037 | $395.18500 |
| 1000 | $0.73043 | $730.43000 |
